Spout HFFS Packing Machine

Spout Horizontal Form-Fill-Seal Packing Machine

Spout Horizontal Form-Fill-Seal (HFFS) Packing Machine is a specialized type of packaging equipment designed to form, fill, and seal spout pouches in a horizontal orientation. These machines are particularly suited for packaging liquid and semi-liquid products, The spout feature allows for easy dispensing and resealing, providing convenience to consumers. The process of a Spout HFFS Packing Machine is similar to a standard HFFS machine, but with additional capabilities to accommodate the spout feature.

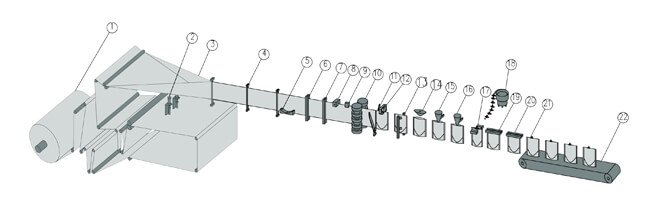

Flow :-  Film Unwind 🡪 Bottom Hole Punching 🡪 Bag Forming 🡪 Film Guide 5 Bottom Seal 🡪 Vertical Seal 🡪 Vertical Seal 🡪 Photocell  🡪  Servo Advance 🡪 Cutting 🡪 Pouch Catching 🡪 Pouch Catching II 🡪 Slant Opening Cutting 🡪 First Pouch Opening 🡪 Vibrator 🡪 Spout Inserting 🡪 Spout Seal 🡪 Second Pouch Opening 🡪 Air Flushing 🡪 Filling I 🡪 Filling II 🡪 Pouch Stretching 🡪 Top Seal I 🡪 Top Seal II 🡪 Finished Product Outlet

Our Spout HFFS Packing Machine for spout pouches is used to automatically form, fill, and seal pouches with spouts in a horizontal orientation. Spout pouches are flexible containers with a resealable spout or nozzle, commonly used for packaging liquids, sauces, creams, and other products.

Enquire Now

Suitable Packaging Samples

Features

  • Bottom Seal Unit
  • Horizontal Sealing Unit
  • Vertical Sealing Unit
  • Mechanical Scissors
  • Set Of Vacuum Bag Opening Device
  • Two Sets Spout Feed & Seal Unit
  • Automatic Material-Level Control System
  • A Photocell Tracking Control System
  • A LCD Touch-Control Operation System
  • A PLC Control System
  • An Automatic Control System
  • A Product Outlet System

Technical Parameters

Model ISHFS-140SC ISHFS -180SC ISHFS -280DSC
Pouch Size
60*90mm(Min) 140*225mm(Max)
90*110mm(Min) 180*260mm(Max)
90*110mm((Min) 140*250mmMax)
Filling capacity
500ml
1000ml
600ml
Packing capacity
50-80ppm
40-60ppm
80-120ppm
Powder
7.4KW
8KW
11.5kw
Air consumption
200NL/min
250NL/min
500NL/min
Machine Dimensions
4280mm(L) 970mm(W) 1500mm(H)
5550mm(L) 1100mm(W) 1400mm(H)
7400mm(L) 1110mm(W) 1400mm(H)
Weight
1600kg
2200kg
3100kg

The typical steps involved in Spout HFFS Packing Machine process

  • Film Unwind: The machine starts by unwinding a roll of flexible packaging material (usually a multilayer laminate) from a reel.
  • Forming: The machine forms the film into the shape of a pouch with a pre-attached spout. The spout is usually placed at the top center of the pouch.
  • Filling: Once the pouch is formed, the machine fills the product through the spout into the pouch. The filling mechanism can be either volumetric or weight-based, depending on the specific requirements of the product being packaged.
  • Spout Sealing: After filling the pouch, the spout is sealed to prevent leakage and ensure the product’s freshness and integrity.
  • Top Seal: The top of the pouch is then sealed, completing the pouch enclosure.
  •
