Gable Top Aseptic Packing Machine
Product category
Automatic Gable Top Aseptic Packaging Machine Filling Machine
Automatic Gable Top Aseptic Packaging Machine is a kind of small type equipment, in low automation degree and small amount of output. Gable Top Aseptic Packaging Machine are specially designed based on for market need. The equipment occupies small area, with low power consumption, and is easily operated and maintained.
Our Gable Top Aseptic Packaging Machine is another type of packaging equipment commonly used in the food and beverage industry. It is designed to fill and seal liquid products in gable-top carton containers in an aseptic manner. Gable top cartons are shaped like a triangular prism with a gable-shaped top, allowing for easy pouring and resealing of the product.
The operation of Gable Top Aseptic Packaging Machine is automatically controlled by computer program, and others are controlled by electric apparatus. The whole progress is controlled by PLC, needs 3 persons to operate. The aseptic process involved in this packaging system is similar to what was described earlier, where both the product and the packaging materials are sterilized separately to ensure a bacteria-free and safe environment. This process enables the products to be preserved without the need for refrigeration or preservatives.
Enquire Now

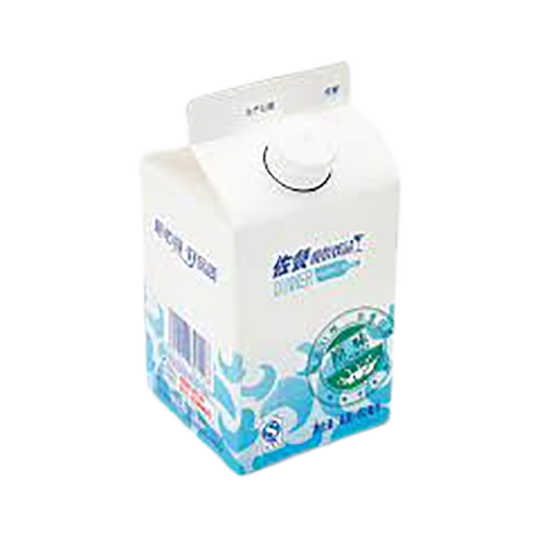

Suitable Bag Type
Suitable for filling & Work flow
Suitable for Filling : Milk, yogurt, cream, beaten egg, soy milk, juice, tea drink, corn drink, pure water, sauce, wine, spices, cleaning solution, chemical product, sugar, grain, cornmeal, other dry powder, etc.
Work flow:
1 => Carton Forming part: Carton → Put the cardboard onto the mandrel→ Bottom heating → Bottom sealing → Top Open Carton
2 => Capping part: Put the cap into the carton’s capping hole → Ultrasonic welding → Top Open Carton with CAP
3 => Filling part: Put the carton onto the conveyor→ Top preforming → Filling → Top heating → Top sealing → Date printing → Finished Product
Technical Parameters
| Property | Value |
|---|---|
Capacity | 200--1000ml / 1000ml-2000ml (Can Be Filled by One Machine) |
Output | 1000-2500 Cartons/Hour (Depending on Model) |
Packing Material | Cardboard Carton / Aluminum Foil Carton |
Recommended Carton Bottom Size | 57*57mm, 70*70mm, 95*95mm, One Size - One Machine |
Filling Temperature | Cold Filling: 2-50℃ / Hot Filling 85-88℃ |
Capping Function | With Capping / Without Capping (Optional) |
Overall Power | 23KW – 3PH |
Machine Dimension | (L*W*H): 3100*800*2600 |
Compressed Air Pressure | 1.0-1.4 Mpa, Flow Rate: 0.8-1.0M3/Min |
Cooling Water | ≥20L/ Min Temperature: Normal Temperature |
Net Weight | 1200kg |
The Characteristic of Gable Top Aseptic Packaging Machine
- Gable Top Aseptic Packaging Machine has a unique and beautiful appearance and applies environmental protection material. The products are in high class for its unique feature and can sell a much better price than other package in the market, which gains considerable profit for middle/small enterprise.
- The production process is convenient than other package and doesn’t need big storage space. A middle size paper box can hold 1,000 Gable Top Aseptic Packaging Machine pieces.
- The carton pieces don’t need to be washed, which save a large sum of washing and sterilizing fee.
- Gable Top Aseptic Packaging Machine filling machine doesn’t need big area of workshop, which enables low cost of setting a factory.
- Gable Top Aseptic Packaging Machine filling machine doesn’t need many workers to operate, so the salary for workers is low.
- Gable Top Aseptic Packaging Machine filling machine can apply hot filling, which makes the products can be kept for 3-12 months under normal temperature. That solved many enterprises’ problem of short shelf life.
- Installation requirement: Smooth floor: cement, floor tile, plastic ground, etc. Do not need to make angle.
- The machine is with carton lifting function to avoid foam forming and splashing when filling juice and milk.
