Namkeen Packing Machine | Masala Packing Machine

We have a leading name in namkeen packing machine and masala packing machine Manufacturers in Noida. We are known for providing high-quality, durable, and efficient packaging machines for food industry businesses. We have built our machines with modern technologies.

Which makes them incredibly easy to operate and maintain. With a smart intervention program, even minimal supervision can ensure flawless operation. If you need to pack snacks or spices like Namkeen, don’t worry.

Our machines are easily managed with various filling systems, infeed and outfeed conveying equipment, inspection systems, and secondary packaging machines. It is capable of meeting your every need.

Our machines feature the precision of a rapid sealing system. This precision guarantees accurate and precise packaging while maintaining the freshness and quality of your products.

Crafted from durable and waterproof stainless steel, our machines are built to last even in the most demanding environments. Our Namkeen Packing Machines require only one or two employees to operate. The production capacity of our machines can be adjusted to your needs.

Enquire Now

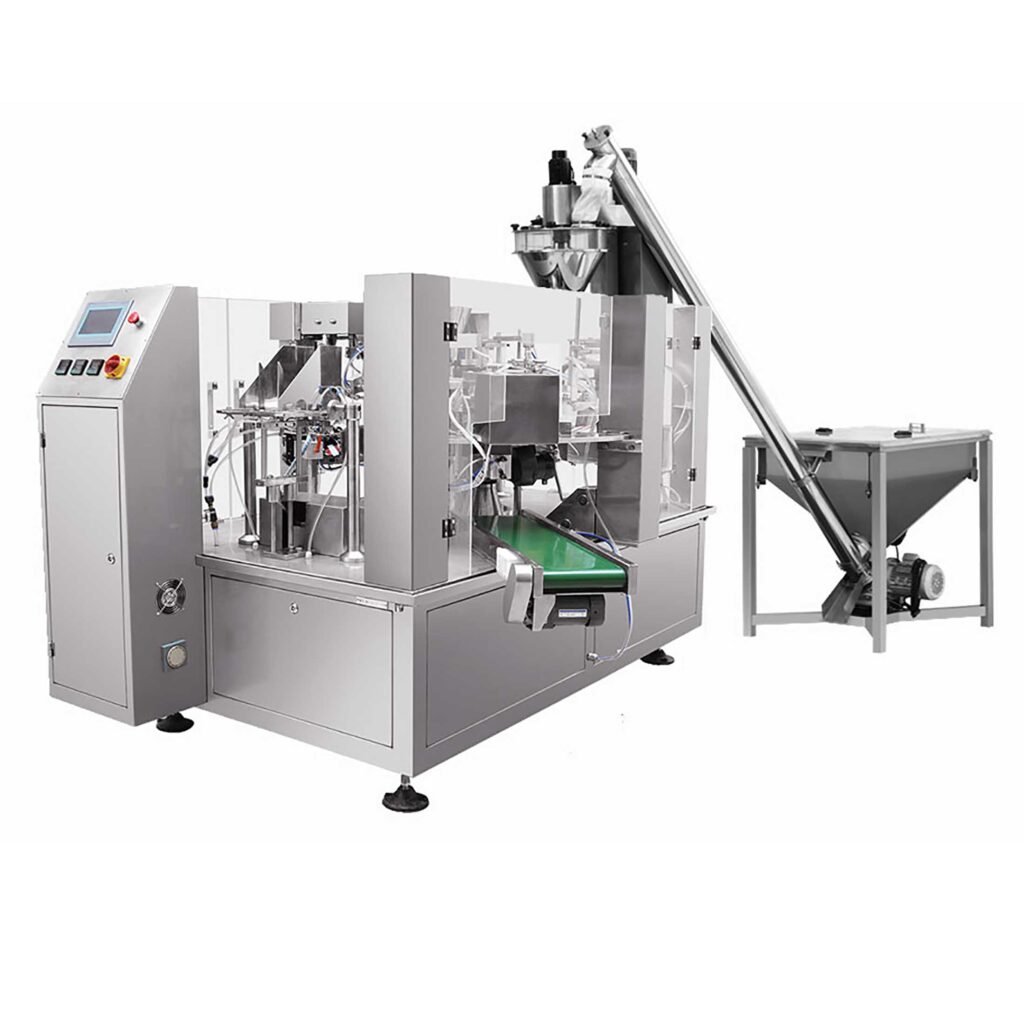

Namkeen, Masala Packing Machine by Imperial Associate

Our Namkeen and Masala Packing Machine is called Pick Fill Seal Machine. There are 8 stations inside this machine. This machine has the capacity of packaging according to 20 to 45 bags per minute.

Our machine is useful for both domestic and commercial purposes. By buying this machine, you can start your Namkeen and Masala packaging business anywhere. You can control the capacity of this machine according to your market requirements.

This machine is made of stainless steel by Imperial Associates. The advantage of a machine made of stainless steel is that this machine runs for a very long time with less maintenance. The power consumption capacity of this machine is 5kw which is very good for you.

Dry Fruits packing Machine

Suitable Bag Type

Technical Parameters

Property Value
No. of working stations
Eight
Bags size in mm
W:120~250mm x L:120~350mm
Bag Type
All Type Of Heat Sealable Preformed Side Seal Bags, Fin Seal Bags,
Gusseted Bags, Block Bottom Bags, Zip-Lock Re-Closeable Bags,
Stand-Up Pouch With Or Without Spout, 3D Bags etc.
Filling Volume
100 – 2500g depending on type of products
Capacity
25-60bags/min for common bag 25-40bags/min for zipper bag
(The speed depends on the product status and filling weight))
Package Accuracy
Error≤±1%
Total power consumption
5 Kw
Dimensions
1140*1500*1560mm
Weight
2000kgs
Compress air requirement
0.6m³/min supply by user

Exclusive Attachments with Machine

  1. Conveyor Type Pouch Feeding System
  2. Hot Foil Type Date Coding System
  3. Zipper Opening & Closing Device
  4. Bottom Gusset Opening System
  5. Bottom Vibrator for Product settle
  6. Product Settlement Reciprocator Vibrator
  7. Nitrogen Flushing System
  8. Pouch Shaper
  9. High Tensile Heater
  10. Euro Hole System
  11. Product Discharge Conveyor

Performance and Features Of Masala and Namkeen Packing Machine

Our Namkeen & Masala Packing Machines are designed with a focus on efficiency, durability and ease of use, making them the ideal choice for businesses that want to streamline their packaging processes. Here are the key features that set our machines apart:

Incredibly easy to operate and maintain: Our machines are equipped with a smart interference program, which ensures smooth operation with minimal effort. They are user-friendly, reducing the need for extensive training or supervision.

Seamless Integration: Whether you need to connect to a variety of filling systems, infeed and outfeed conveying equipment or inspection systems, our machines are designed for easy integration with your existing setup. This flexibility extends to secondary packaging machines as well.

Perfect and Accurate Rapid Sealing System: The most important thing in a packaging system is the accuracy of packing. That is exactly what Imperial Associates machines provide you. This ensures that the quality and freshness of your products is maintained.

DURABLE & WATERPROOF STAINLESS CONSTRUCTION: Built to last, our machines feature stainless steel construction that is both durable and waterproof, making them suitable for long-term use in challenging environments.

Operable with 1 or 2 workers: Our Namkeen packing machine requires only one or two workers to operate. The advantage of having fewer workers helps you save on labor costs while maintaining your high productivity levels.

These features make our Namkeen and Masala packing machines a valuable addition to any business in the food industry, ensuring consistent, high-quality packaging with minimal hassle.

There are other features of our Namkeen Packing Machine

  • Fill automatic preformed bags packaging system suitable for large and medium-sized production industries.
  • Changing bag type just only do quick adjustments without size parts changeover.
  • Friendly man-machine interface.
  • Easy to clean and low in maintenance.
  • Complying with GMP standards, all product contact parts are in stainless steel or food-grade materials.
  • State-of-the-art PLC and touchscreen electric control system.
  • Wash down and anti-rust construction.
  • Possibility to link up and synchronize with other up and downstream packaging Equipment.

These features make our Namkeen and Masala packing machines a valuable addition to any business in the food industry, ensuring consistent, high-quality packaging with minimal hassle.

Safety

  1. No bag – no filling- no sealing, machine alarm.
  2. Bag opening miss – no filling – no sealing, machine alarm.
  3. Machine stop or alarm when the air pressure is abnormal.
  4. Error position display at the control panel.
  5. Control panel locate on the right side top of the machine.
  6. Outside of the machine and all the parts which touch production all made by stainless steel.
  7. There are several safety doors made by aluminum Profile Frame.
  8. The doors are equipped with safety proximity sensors.
  9. Machine surface can be washed by water and brushed by cloth.

Packaging Process

Our Namkeen Packing Machine is designed to deliver efficient and accurate packaging through a well-organized series of stations. Here is a step-by-step overview of how our machine works:

Station 1 🡪 Bag Feeding

In this stage, several pouches or bags are loaded into the bag magazine. The main magazine is adjustable and can move up and down to facilitate easy feeding. When the magazine moves down, the bags can be loaded easily. Once in position, a mechanical arm equipped with two vacuum caps picks up the bags and transfers them to the mechanical gripper on the rotary table.

Station 2 🡪 Date Printing & Zipper Opening:

Here, date coding is applied using a hot foil coding device, ensuring that the required production information is imprinted on each pouch. Also, the zipper located at the top of the pouch is opened to prepare it for the next stage.

Station 3 🡪 Pouch top and bottom opening

This station uses two sets of vacuum cups to open the pouches at both the top and bottom, making them ready for filling. Stand-up (flat) pouches are then expanded and ready for accurate and efficient filling in the subsequent station.

Station 4 🡪 Filling 1

An opening detection device checks whether the pouch is correctly placed and fully open. The device ensures that only properly opened pouches proceed to the filling stage. If the pouch is not open, the system stops the filling and sealing process.

Station 5 🡪 Filling 2

This optional stage allows a second filler to be added, which provides flexibility in the amount of product delivered and accommodates different packaging requirements.

Station 6 🡪 Nitrogen dosing and zipper closure

In this stage, nitrogen may be injected into the bag to extend the shelf life of the product. The zipper is then closed to seal the nitrogen and protect the contents.

Station 7 🡪 Sealer 1

The first sealing system uses high temperatures to ensure a strong, leak-proof seal. This twin-sealer setup is crucial for maintaining product integrity and freshness.

Station 8 🡪 Sealing 2 and Discharge

The final sealing process involves cold pressing to stabilize the seal and prevent any wrinkles. Once sealed, the finished pouches are automatically discharged, completing the packaging cycle.

This carefully engineered process ensures that each pouch is efficiently packed, sealed, and ready for distribution, reflecting our commitment to quality and precision in every machine we manufacture.

Benefits of buying Namkeen and Masala Packing Machine from Imperial Associates

Choosing to buy your Namkeen and Masala Packing Machine from Imperial Associates has various benefits that make our products stand out in the market:

24*7 Service Availability: If you buy a Masala Packing Machine for your business from Imperial Associates, you will get 24*7 support from our support team. You can contact our support team for any kind of technical assistance.

Support  Available for branding: When you buy a masala packing machine from us, our support team provides you with complete support from the installation of the machine, the machine operating guide, and building your brand.

Maintenance: Imperial Associates also takes care of the maintenance of your machine. So that you can focus only on your production.

Delivery: If you buy the machine from us, then our company is responsible for delivering the machine to your home.

Price: Imperial Associates Namkeen & Masala Packing Machine Prices are designed in such a way that even a beginner in the packing business can easily purchase our machines. Our prices are different from other manufacturing companies.

When you choose Namkeen & Masala Packing Machine from Imperial Associates, you get high-quality products, advanced technology, and excellent customer support, which increase the effectiveness and success of your packaging processes.
